Value Picker
The Value Picker is an interactive measurement tool used to retrieve several measurements in the analysis of the light distribution.
The Value Picker allows you to retrieve for a specific location:
- the Luminance value, in cd/m2, or the Illuminance value, in lux,
according to the selected Photometry Mode.
Value to measure
Photometry Mode
Luminance
Color
Luminance
Illuminance
Illuminance
Isolines
Iso Areas
the x and y color coordinates in the lighting system referential, representing the lateral and depth coordinates respectively, based on the International Commission on Illumination (CIE) 1931 color space

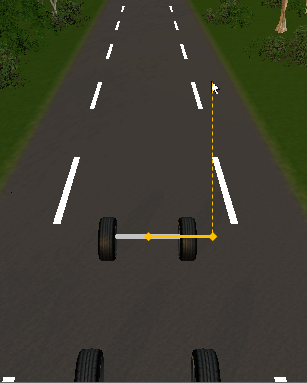

- the Width representing the distance of the picked point from the middle of the car's front axle: negative value to the left, positive value to the right.

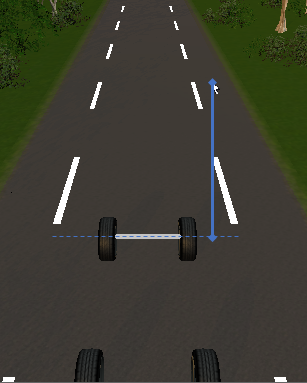

- the Range representing the distance of the picked point measured from the front axle of the car: negative value to the front, positive value to the back.
