Displaying the Interactive Preview Parameters

The following procedure helps you display the preview of parameters of an Optical Surface or an to give a dynamic overview upon feature modification.

Important: The Interactive Preview can be time-consuming, especially for the Projected grid preview in case of a huge number of grid intersections.

To display a parameter's interactive preview:

Prerequisites: An Optical Surface must already be created.

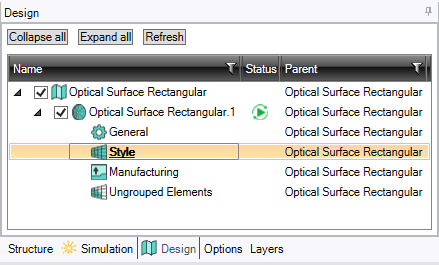

  1. In the Design panel, open one of the sub-definition group of the feature.

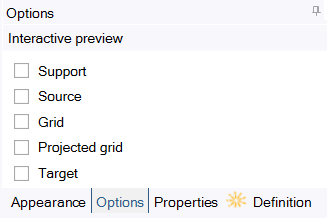

  2. Open the Options panel.
  3. In the Options panel, check the parameters' interactive previews you want to display in the 3D view.
    • Source
    • Support (only parabolic support can be previewed)
    • Grid (only rectangular and circular grids can be previewed)
    • Projected Grid
    • Target
The parameters' previews are displayed in the 3D view and change dynamically upon feature modifications.
