This section describes examples for:

Scoping to FE Entities (Elements and Nodes)

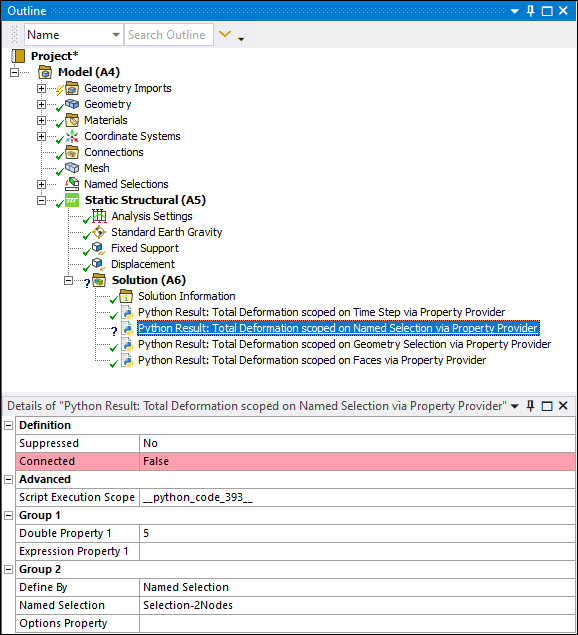

Pre-define a nodal named selection "Selection-2Nodes," with two nodes selected. Reload the property and set it as below:

The workflow below is an example of:

Total Deformation scoped on Time Step and Name Selection via Property Provider Pane

  import mech_dpf
  import Ans.DataProcessing as dpf

  dataSource = dpf.DataSources(analysis.ResultFileName)
  u = dpf.operators.result.displacement()
  nrm = dpf.operators.math.norm_fc()

  prop_val = this.GetCustomPropertyByPath("Group 1/Double Property 1").Value
  timeScop = dpf.Scoping()
  timeScop.Ids = [int(prop_val)]
  u.inputs.time_scoping.Connect(timeScop)
  u.inputs.data_sources.Connect(dataSource)

  scoping_refs = this.GetCustomPropertyByPath("Group 2/Scoping Property/Named Selection").Value
  mech_dpf.setExtAPI(ExtAPI)
  nodes_loc = mech_dpf.GetNodeScopingByRefId(scoping_refs)
  u.inputs.mesh_scoping.Connect(nodes_loc)

  nrm.Connect(u)

  dpf_workflow = dpf.Workflow()
  dpf_workflow.Add(u)
  dpf_workflow.Add(nrm)
  dpf_workflow.SetOutputContour(nrm)
  dpf_workflow.Record('wf_id', True)
  this.WorkflowId = dpf_workflow.GetRecordedId()

Two helper methods, GetNodeScopingByRefId() and GetElementScopingByRefId() are provided in mech_dpf to create the corresponding nodal/elemental scoping with the connected nodes/elements from the selection.

Similarly, if the geometry scoping is defined by Geometry Selection, and several nodes are selected manually by using the node select tool in the Graphics Toolbar, in the above script, just replace the line:

nodes_val = this.GetCustomPropertyByPath("Group 2/Scoping Property/Named Selection").Value

with:

nodes_val = this.GetCustomPropertyByPath("Group 2/Scoping Property/Geometry Selection").Value

Scoping to Geometry (Faces, Bodies, etc.)

The same script in the above section can be used if a geometry is selected (faces, bodies, vertices, etc.) with the property set as shown below.

The workflow below is an example of getting all nodes belong to the selected faces and display the total deformation on these nodes.

Total Deformation Scoped on Time Step and Two Faces via Property Provider Pane

  import mech_dpf
  import Ans.DataProcessing as dpf

  dataSource = dpf.DataSources(analysis.ResultFileName)
  u = dpf.operators.result.displacement()
  nrm = dpf.operators.math.norm_fc()

  prop_val = this.GetCustomPropertyByPath("Group 1/Double Property 1").Value
  timeScop = dpf.Scoping()
  timeScop.Ids = [int(prop_val)]
  u.inputs.time_scoping.Connect(timeScop)

  u.inputs.data_sources.Connect(dataSource)

  scoping_refs = this.GetCustomPropertyByPath("Group 2/Scoping Property/Geometry Selection").Value

  mech_dpf.setExtAPI(ExtAPI)
  nodes_loc = mech_dpf.GetNodeScopingByRefId(scoping_refs)
  u.inputs.mesh_scoping.Connect(nodes_loc)

  nrm.Connect(u)
  dpf_workflow = dpf.Workflow()
  dpf_workflow.Add(u)
  dpf_workflow.Add(nrm)
  dpf_workflow.SetOutputContour(nrm, dpf.enums.GFXContourType.GeomFaceScoping)
  dpf_workflow.Record('wf_id', True)
  this.WorkflowId = dpf_workflow.GetRecordedId()

Similarly, dpf.enums.GFXContourType.GeomFaceScoping is used to get a better contour display as discussed next.

Von Mises Stress with Different Scoping Representations

The below enum is introduced for a better contour result display in various scoping:

It can be set as a second parameter when calling the below method in the script:

dpf_workflow.SetOutputContour(to_elemental_op, dpf.enums.GFXContourType.FENodalScoping)

while the default scoping type is:

dpf.enums.GFXContourType.FENodalScoping

The workflow below is an example of displaying the Von Mises Stress on named selection with different scoping representations via Property Provider.

Von Mises Stress Scoped on Time Step and Named Selection via Property Provider Pane

  import mech_dpf
  import Ans.DataProcessing as dpf
  dataSource = dpf.DataSources(analysis.ResultFileName)
  s_eqv_op=dpf.operators.result.stress_von_mises()

  prop_val = this.GetCustomPropertyByPath("Group 1/Double Property 1").Value
  timeScop = dpf.Scoping()
  timeScop.Ids = [int(prop_val)]
  s_eqv_op.inputs.time_scoping.Connect(timeScop)

  s_eqv_op.inputs.data_sources.Connect(dataSource)

  scoping_refs = this.GetCustomPropertyByPath("Group 2/Scoping Property/Named Selection").Value
  mech_dpf.setExtAPI(ExtAPI)
  nodes_loc = mech_dpf.GetNodeScopingByRefId(scoping_refs)
  s_eqv_op.inputs.mesh_scoping.Connect(nodes_loc)

  dpf_workflow = dpf.Workflow()
  dpf_workflow.Add(s_eqv_op)
  dpf_workflow.SetOutputContour(s_eqv_op, dpf.enums.GFXContourType.FENodalScoping)
  dpf_workflow.Record('wf_id', True)
  this.WorkflowId = dpf_workflow.GetRecordedId()

Different scoping representations and the proper enum to select are summarized in the below table.

Scoping Representation and the Corresponding GFX Contour Type

Named Selection	Method in mech_dpf	dpf.enums.GFXContourType
Four Nodes	GetNodeScopingByRefId()	dpf.enums.GFXContourType.. FENodalScoping
Averaged Von Mises stress scoped on four nodes.
Four Elements	GetElementScopingByRefId ()	dpf.enums.GFXContourType. FEElementalScoping
Averaged Von Mises stress scoped on four elements
Four Element Faces	GetNodeScopingByRefId ()	dpf.enums.GFXContourType. FEElementalFaceScoping
Averaged Von Mises stress scoped on four element faces.
Four Vertices	GetNodeScopingByRefId ()	dpf.enums.GFXContourType. GeomVertexScoping
Averaged Von Mises stress scoped on four vertices
Two Edges	GetNodeScopingByRefId ()	dpf.enums.GFXContourType. GeomEdgeScoping
Averaged Von Mises stress scoped on two edges.
Two Faces	GetNodeScopingByRefId ()	dpf.enums.GFXContourType. GeomFaceScoping
Averaged Von Mises stress scoped on two faces.
One Body	GetNodeScopingByRefId ()	dpf.enums.GFXContourType. GeomBodyScoping
Averaged Von Mises stress scoped on 1 body
