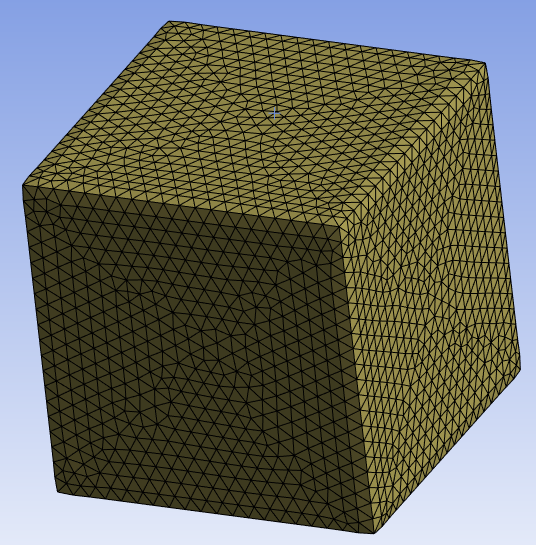

Constant Size Surface Mesher creates a surface mesh on the scoped set of entities consisting of triangular or quadrilateral mesh elements of same size.
Constant Size Surface Mesher Details view has the following options:
General
Scope
Only Part and Label can be selected for surface meshing.
Definition
Define By: Allows you to define the element size based on value or settings. The available options are:
Value: Defines the element size based on the provided value.
Settings: Defines the element size based on the settings under Mesh Settings in the Steps Details view.
Element Size: Provides the element size for surface meshing. When Define By is Value, you can specify the element size for surface meshing. When Define By is Settings, displays the element size calculated based on the provided Mesh Settings in the Steps Details view. The Element Size is read-only. You can click
on the right corner of the option and click
Publish to publish Element Size to
the worksheet. You can parameterize Element Size only
when Define By is Value.Mesh Type: Allows you to select the type of mesh you want to generate. The default value is Triangles. The available options are:
Triangles: Creates mesh with triangular elements.
Quadrilateral: Creates mesh with quadrilateral elements.
