Use the Edge Coloring option to distinguish boundary edges:
| By Body Color (default): Displays body colors to represent boundary edges. |
| By Connection: Displays five different colors corresponding to five different categories of connectivity. The categories are: free (blue), single (red), double (black), triple (pink) and multiple (yellow). Free means that the edge is not shared by any faces. Single means that the edge is shared by one face and so on. |
| Black: Turns off the edge/face connectivity display. The entire model is displayed in black. |
Edge Coloring topics:
Accessibility
The Accessibility option is available for shared exterior edges and for wireframe displays. In Ansys DesignModeler application, the option is accessible from two locations:
View Menu (see depiction of path below)
The Graphics Options Toolbar is also accessible via Options in the Tools Menu of the Project Schematic. Select Appearance to adjust the Edge Thickness and Edge Colors.

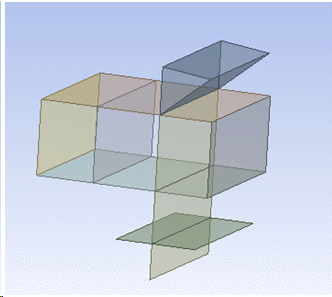

Body Color
The Body Color option allows the boundary edge color consistent with the body color.
Edge Display Control
This option group displays the boundary edges based on the edge connectivity. There are five types of edge connectivity: free, single, double, triple and multiple.
Free defines that the edge is not shared by any faces.
Single means that the edge is shared by one face and so on.
Each type of edge display can be turned on and off.
| Edge Type | Default Edge Color |
| Free | Blue |
| Single | Red |
| Double | Black |
| Triple | Pink |
| Multiple | Yellow |
Thicken Edge Display
The Thicken Edge Display option allows you to thicken a particular type of edge. It helps to identify a special group of edges and distinguish them from the rest of the model.
