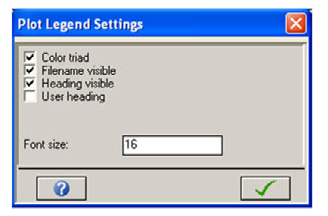

This window lets you set the plot legends you want to display in the View panel.
- Color triad
Show a colored triad in the lower left corner of the View panel (otherwise the triad is monochrome).
The axes are color-coded as follows :
Red: X Green: Y Blue: Z - Filename visible
Makes the filename (ident) of you model visible in the bottom left corner of the View panel.
- Heading visible
Makes the heading of your model visible in the bottom right corner of the View panel.
- User heading
Override the heading of your model with an alternative (user) heading. Enter the user heading in the field provided.
- Font size
Enter the size of the font used in the graphics window for the legend, scale, and user heading.
