This window provides a Performance Profiler that lets you visually monitor the load balancing performance of parallel simulations.

To take full advantage of this option, you must create an empty file profile.cfg in the directory where the Autodyn model resides.

If you do this, the following type of output will be displayed in the scrolling box at the foot of the window:

Cycle/Time    1  /  1.637809225157053E-4 clock time (msec) 32856  (update)
Cycle/Time    2  /  3.439399411878227E-4 clock time (msec) 17030
Cycle/Time    3  /  5.421148660224775E-4 clock time (msec) 17056
Cycle/Time    4  /  7.601072880654561E-4 clock time (msec) 17029
Cycle/Time    5  /  9.998989575100770E-4 clock time (msec) 17054
Cycle/Time    6  /  1.263669799616239E-3 clock time (msec) 17016
Cycle/Time    7  /  1.553817732221804E-3 clock time (msec) 17081
Cycle/Time    8  /  1.872980465005591E-3 clock time (msec) 16994
Cycle/Time    9  /  2.224059478677190E-3 clock time (msec) 17116
Cycle/Time   10  /  2.610246402086324E-3 clock time (msec) 17024
Cycle/Time   11  /  3.035052027043786E-3 clock time (msec) 17075
Cycle/Time   12  /  3.502338224625149E-3 clock time (msec) 17070
Cycle/Time   13  /  4.016353053105620E-3 clock time (msec) 17053
Cycle/Time   14  /  4.581769376689206E-3 clock time (msec) 17019
Cycle/Time   15  /  5.203727346111727E-3 clock time (msec) 17070
Cycle/Time   16  /  5.887881127305133E-3 clock time (msec) 17011
Cycle/Time   17  /  6.640450302929377E-3 clock time (msec) 17085
Cycle/Time   18  /  7.468276414058693E-3 clock time (msec) 34853  (update)
Cycle/Time   19  /  8.378885156037852E-3 clock time (msec) 17017
Cycle/Time   20  /  9.380554793925532E-3 clock time (msec) 17098

Each line gives the cycle number, the cycle time, and the wall clock time that the calculation used to compute the cycle (in milliseconds). If the line ends with "(update)", this indicates that work unit information for the interaction logic was updated on that cycle. Such cycles usually take longer to compute.

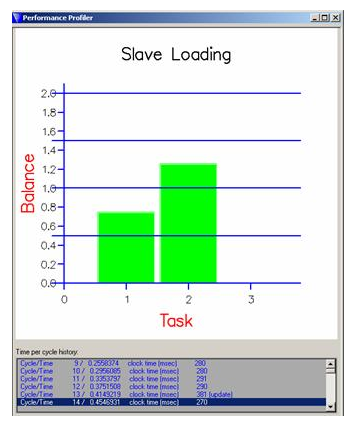

The profiler also shows you visually how well balanced your calculation is. In the example shown above, Balance is a measure of the relative CPU time spent on each task for each cycle in the simulation. So a balance of 1.0 for each task is the ideal / most efficient goal. A balance of less than 1.0 means that a task is under utilized (does not have enough work to do). A balance of greater than 1.0 means that a task is over utilized (has too much work to do).
