5.4.1. History - Multiple Variable Plot - Set All Plots

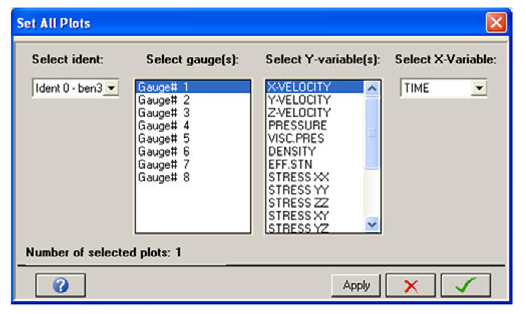

This window lets you quickly add multiple plots to a multiple variable plot list.

Select ident

Choose an ident from the models you have loaded.

Select gauge(s)

Choose one or more gauges (use the Ctrl and Shift keys in the usual way to make your selection).

Select Y-variable(s)

Choose one or more variables for the Y axis (use the Ctrl and Shift keys in the usual way to make your selection).

Select X-variable

Choose a variable for the X axis.

Number of selected plots

How many plots you have defined with your current selections. The number of plots is the union of all selections in the four input regions.
