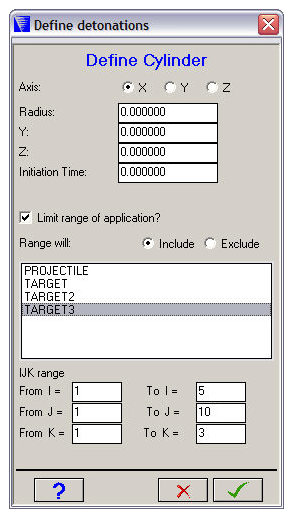

This window lets you define a detonation cylinder (detonation propagates radially inward and outward from the surface of the cylinder).
- Axis
The axis (X, Y, or Z) to which the axis of symmetry of your cylinder will be parallel.
- Radius
The radius of your cylinder.
- Center Coordinates
The two coordinates for the center of your cylinder.
- Initiation Time
The initiation time in field (unless you chose to have it computed).
- Limit range of application?
Limit the range of application of the detonation point (an extra dialog is presented).
- Range will Include / Exclude region
For each Part, you can specify an index range that is used to limit the range of application of the detonation point.
Select whether you want the index range to specify the included region or the excluded region.
- Part list
Lists all the Parts in your model. Select a Part in this window to limit its range of application.
- IJK range
The IJK range you want to use to limit the range of application of the detonation point.
