If you have evaluated design points in an Ansys HPC Platform Services project, you can import any design points of interest into the Workbench project for further analysis or review:
On the Project Schematic, open the Parameter Set bar into which to import design points.
In the Table pane, right-click and select .
Note: This option is also available on the context menu for the Outline pane if you right-click a node that supports importing design points from Ansys HPC Platform Services.

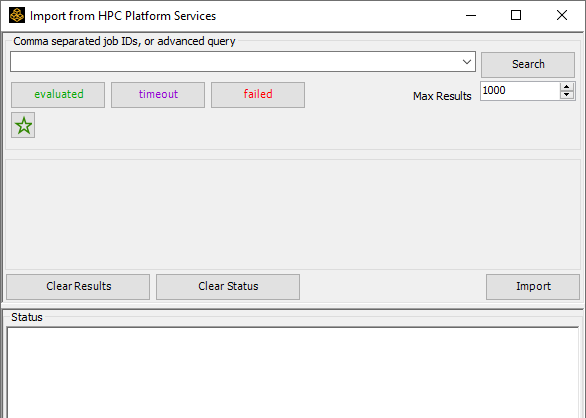

The Import from HPC Platform Services window opens.
To select the design points to import, you can specify design point IDs, enter a query string, or enable filters. When you place the mouse cursor over the description for the field in which you enter IDs or a query string, the tooltip displays usage examples.
By default, the maximum number of design points returned from a query or from enabled filters is 1000. However, before querying or filtering, you can change the value for Max Results. This field appears in the upper right corner, below the button.
Select the design points to import using one of these methods:
Specify design points IDs, separating them with commas, and click .
Enter or select a previously entered query string and click .
Click the buttons for filters to switch between enabling and disabling them. Choices are for the evaluated, timeout, and failed status filters and the star filter.
The heading for the Design Points pane displays the total number of design points selected in parentheses. The table displays these design points. Below the table, the buttons on the left clear the table of results and clear the Status pane of processing information. On the right, the button imports the selected design points into the Parameter Set bar.
Once the table displays the design points that you want to import, click .
The window closes and a progress bar appears.
If the Ansys HPC Platform Services project and Workbench project have differences beyond just design points, a dialog box indicates that imported design points will be set out-of-date and asks if you want to continue.
The design points that are imported into the Workbench project from Ansys HPC Platform Services are not linked to the design points in Ansys HPC Platform Services. You can perform standard operations on an imported design point, such as setting it as the current design point.
