Some turbomachinery designs have secondary flow paths that are outside the main passage.

TurboGrid enables you to add one or more secondary flow paths to a case.

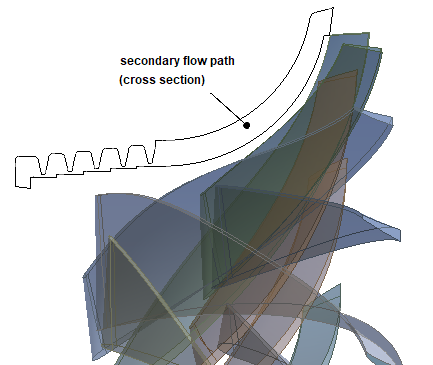

Figure 11.1: Secondary Flow Path for a Compressor

Each secondary flow path is axisymmetric, located outside the main flow passage, and has one or more interfaces with either the hub or shroud.
