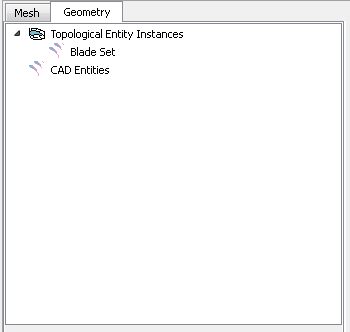

Select between using CAD geometry or profile point data as a geometry source. This selection is made by the Input Mode setting in the geometry browser, which is the main object editor of the Geometry workspace. To access the geometry browser, double-click a high-level object (either the Topological Entity Instances object or the CAD Families object) in the object selector.

Using the object selector, object editors, and viewer, verify the import of CAD geometry from an upstream (BladeEditor) Geometry cell in Workbench, or manually import CAD data from another source. For details, see Defining Geometry from a CAD Source.

Specify a source of profile point geometry data (for example, an *.inf file with associated curve files). For details, see Defining Geometry from Profile Points.
