Deviation Tool

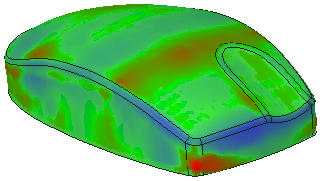

Use the Deviation tool to show the distance from a source, or reference, body to a selected body or mesh body. Use this analysis to see how closely the geometry of two bodies match up. For example, you would use the Deviation tool when you reverse engineer a design from mesh data to see how closely your design matches the mesh.

The Deviation tool also works to show deviation between meshes.
