5.4.2.6. Contact Results Wizard

The purpose of this wizard is to create post-processing objects related to contacts, and to export multiple images to files as well as Microsoft PowerPoint presentations.

This wizard has a Contact Tool Results tab, which allows you to create post-processing objects related to contacts, and to export multiple images to files as well as Microsoft PowerPoint presentations.

This tab contains multiple sub-tabs:

Create Contact Results

This tab is used to create contact results such as Pressure and Status contours. These can be created for multiple locations and time points.

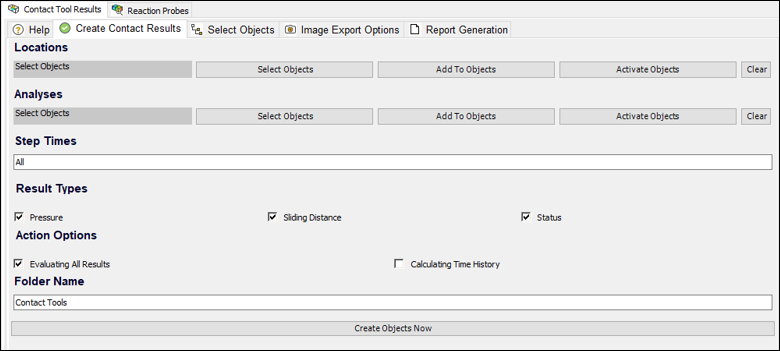

Figure 5.28: Create Contact Results Tab

Create Contact Results Tab


Image Export Options

This tab is used to create images of the Contact Result contours and save them to a file.

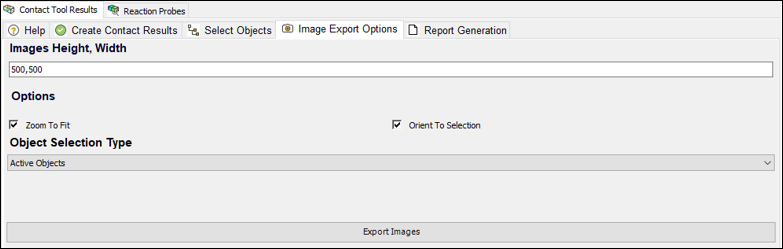

Figure 5.29: Image Export Options Tab

Image Export Options Tab


Report Generation

This tab is used to export created images to a Microsoft PowerPoint presentation in a grid format.

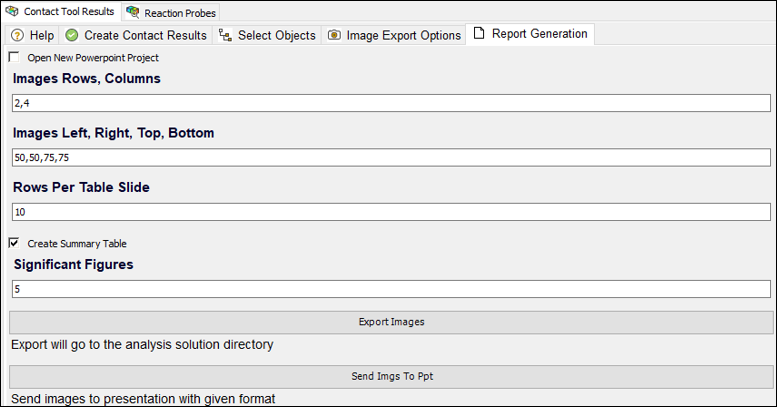

Figure 5.30: Report Generation Tab

Report Generation Tab
