6.3. Define Motion of Roller Parts

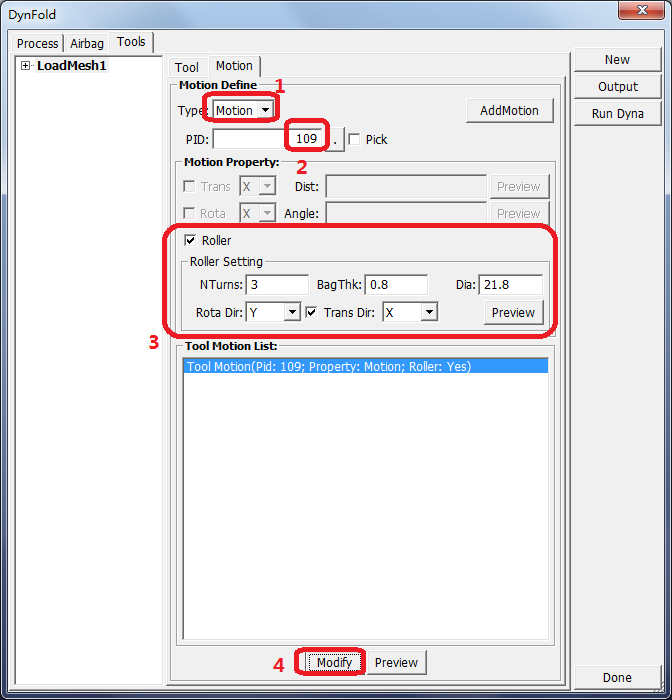

  1. Define appropriate parameters for roller 1 motion.

  2. Enter PID = 109 .

  3. Enter Roller Settings: roller number of turns = 3, bag thickness = 0.8, roller diameter = 21.8, roller rotate direction = Y, roller translate direction = X.

  4. Click Modify.

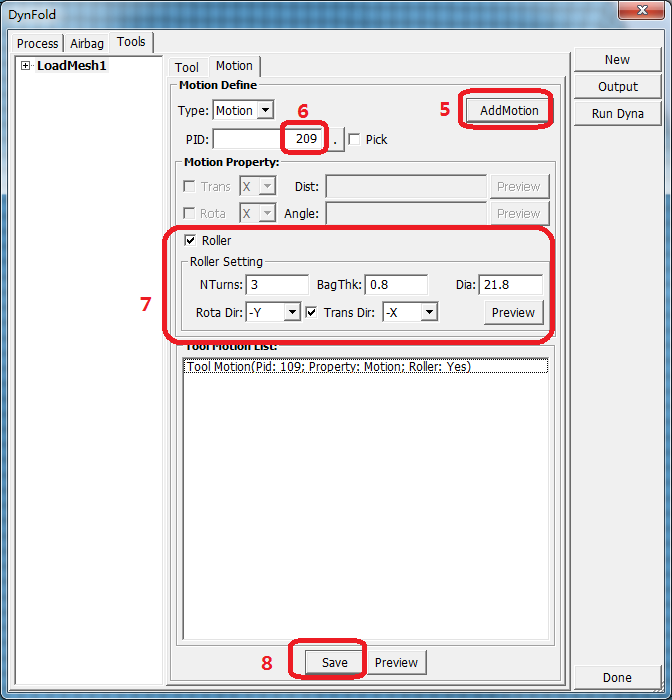

  5. Click AddMotion.

  6. Enter PID = 209 .

  7. Define appropriate settings for roller 2 motion: roller number of turns = 3, bag thickness = 0.8, roller diamete r = 21.8, roller rotate direction = -Y, roller translate direction = -X.

    Note:  You can use the Preview button to watch the final position of the roller part after motion.

  8. Click Save.
