3.7. Create Mixed Spiral Belt

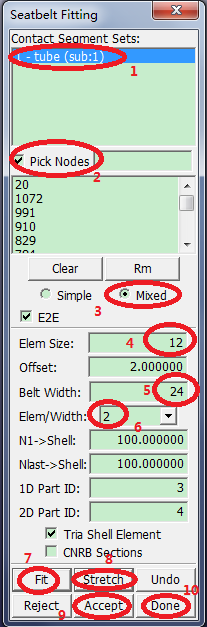

  1. Application > Seatbelt Fitting .

  2. Select 1 - tube from the Contact segment set list.

  3. Add the following node IDs to the list in this order:.

    20, 1072, 991, 910, 829, 784, 703, 622, 541, 496, 415, 29.

  4. Enter Elem. size = 12.

  5. Enter Belt width = 24.

  6. Set Elem/width = 2.

  7. Click Fit.

  8. Click Stretch 3 times.

  9. Click Accept.

  10. Click Done.
