2.10. Open Fine Mesh Airbag Model

  1. File > Exit.

  2. Open new session of LS-PrePost.

  3. File > Open > LS-DYNA Keyword File.

  4. Open airbag_fine.k.

  5. FEM > Model and Part > Assembly and Select Part".

  6. Select 4 rigid inflator can from the list.

  7. Click Rev.

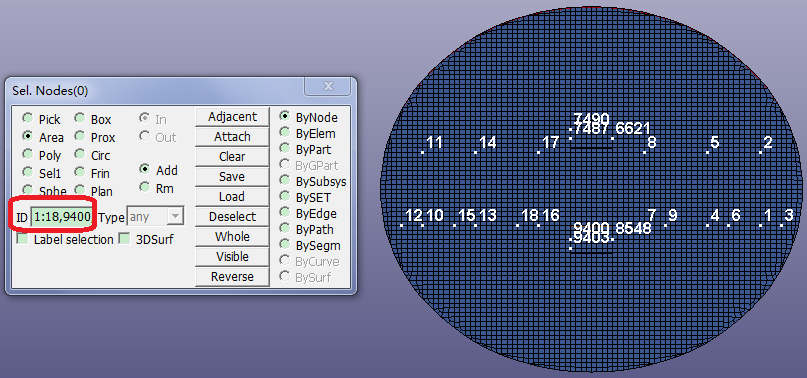

  8. FEM > Element Tools > Identify.

  9. Enter Key in ID = 1:18,9400,8548,9403,7487,6621,7490.

  10. Press Enter on the keyboard.

  11. Click +10 render button.

  12. Click Rx render button 3 times.
