4.12. View Results Side by Side Using the Model Interface

  1. Click File > Open > LS-DYNA Binary Plot.

  2. Open \run2\d3plot.

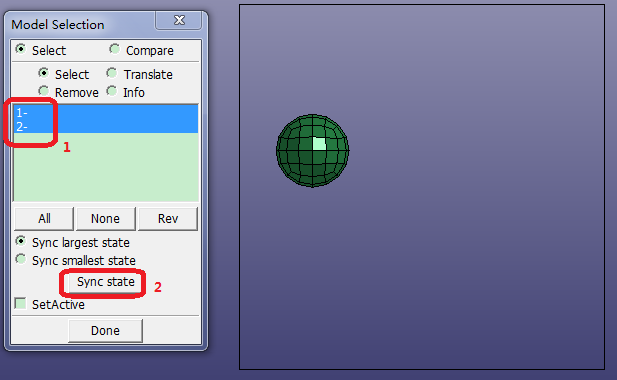

  3. Click FEM > Model and Part > Model Selection.

  4. Hold down Ctrl on the keyboard and select both 1- and 2- from the list.

  5. Click Sync state.

  6. Select Translate.

  7. Select 2- from the list.

  8. Deactivate Y.

  9. Deactivate Z.

  10. Set Trans Dist: 2.600e+002.

  11. Click the Right Arrow button.

  12. Click the Play button in the bottom panel.
