4.8. Plot the Stress Contour Using the Fcomp Interface

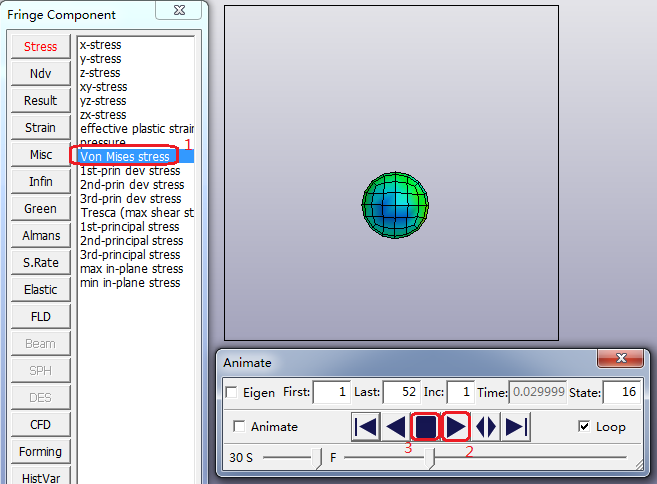

  1. Click FEM > Post > Fringe Component.

  2. Select Von Mises stress from the list.

  3. Click the Play button in the bottom panel.

  4. Click the Stop button in the bottom panel.
