3.7. Add Constraints

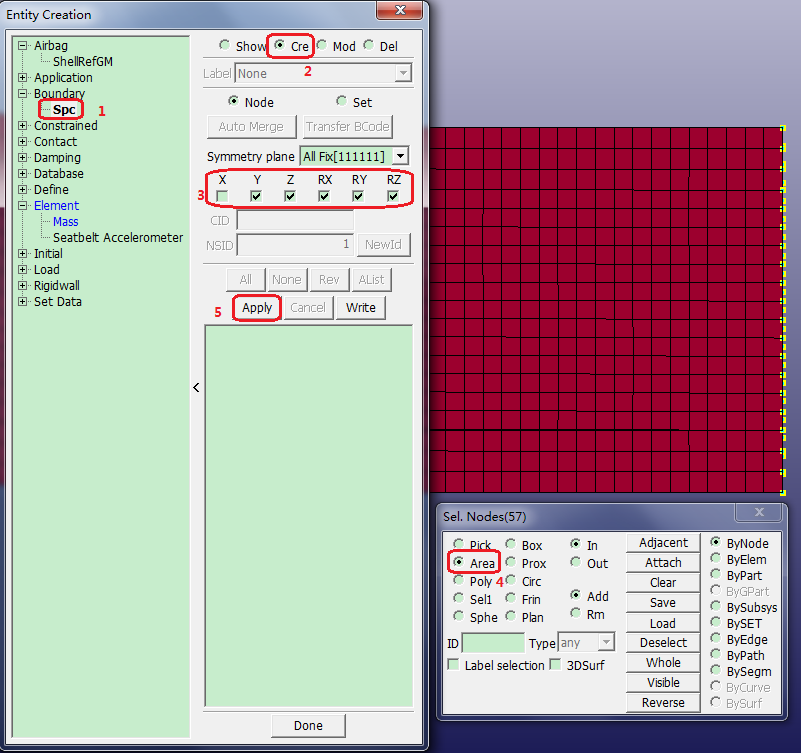

  1. Click FEM > Model and Part > Create Entity.

  2. Select SPC.

  3. Select Cre.

  4. Activate Y.

  5. Activate Z.

  6. Activate RX.

  7. Activate RY.

  8. Activate RZ.

  9. Select Area in the gen select panel (should already be selected).

  10. Draw box to select the end layer of nodes.

  11. Click Apply.
