3.3. Define Section Properties

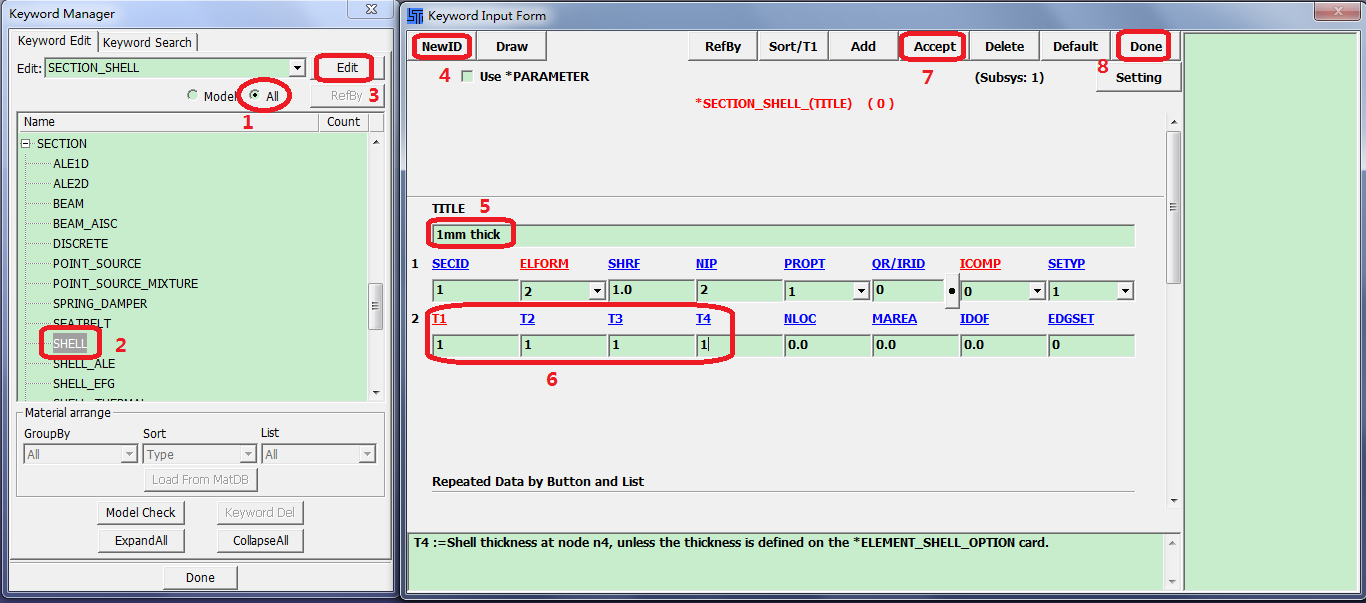

  1. Click FEM > Model and Part > Keyword Manager.

  2. Select All.

  3. Select SECTION.

  4. Select SHELL from the list.

  5. Click Edit.

  6. Click NewID in the KEYWORD INPUT popup form.

  7. Enter TITLE: 1mm thick.

  8. Enter T1=1, click text field T2, then T2, T3 and T4 also set to 1 automatically.

  9. Click Accept.

  10. Click Done.
