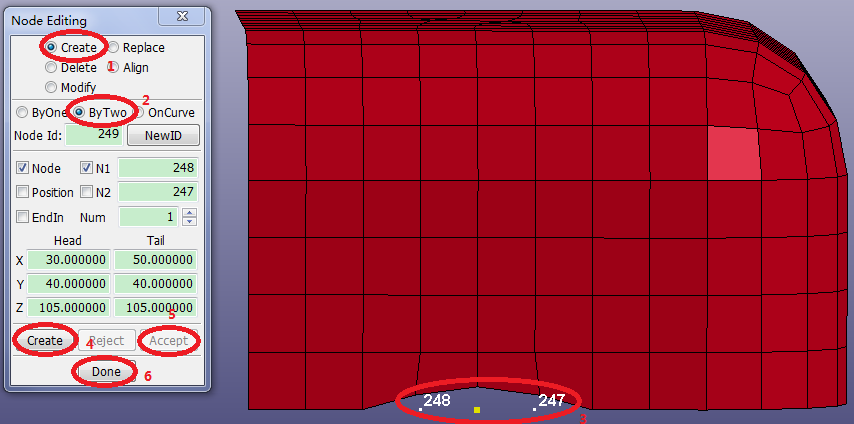

2.3. Create Node Between Existing Nodes

  1. Select FEM > Element Tools > Node Editing.

  2. Select Create in the Node Editing Interface.

  3. Select ByTwo in the lower panel.

  4. Click the left-most free node in the graphics window (NID 248).

  5. Click the right-most free node (NID 247).

  6. Click Create.

  7. Click Accept.
