Define 2D Element Properties

The Define 2D Element Properties option allows you to define shell (surface) element properties. Choose the Type of 2D element from the drop-down list. Each type has its own DEZ.

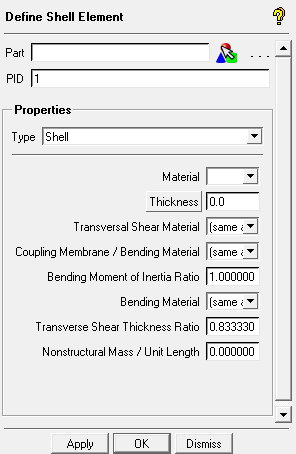

Figure 487: Define Shell Element DEZ

The following sections describe the 2D (Shell) Elements that can be defined:

Shell Elements
Shear Elements
Layered Composite Elements

Select the part to which the defined property will be assigned, and the PID of the property. Nastran property cards reference this ID.
