Pressures can
be defined to apply to surfaces, subsets, or parts. The metric unit
of pressure is N/mm2, and the pressure
is applied to all elements on the entity once meshing is done.

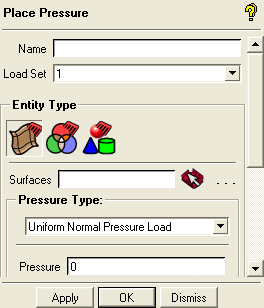

- Name
Assign a name to the pressure.
- Load Set
Loads for different properties are grouped by sets. Sets are labelled by integer values.
- Entity Type
Select the entities to which the pressure is to be applied.
- Pressure Type
Uniform Normal Pressure Load
Enter the magnitude of the pressure that will be uniformly applied.
General Pressure Load
Enter the parameters to define the General Pressure Load.
