The metric unit of
temperature used is °K (Kelvin scale).

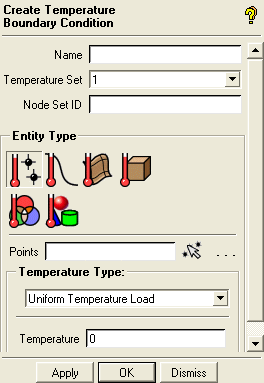

- Name
Name of the Temperature Set.
- Temperature Set
Set number for the defined Temperature.
- Node Set ID
specifies the ID number of the Node Set.
- Entity Type
Select the entities to which the temperature boundary condition is to be applied.
- Temperature Type
This option applies to points only. The temperature load will be applied uniformly.
- Temperature
The value of the temperature acting on the selected entities.
