In order
to define constrained node sets, a mesh must be loaded.
Note: This option is available for the LS-DYNA, Ansys, and Autodyn solvers.

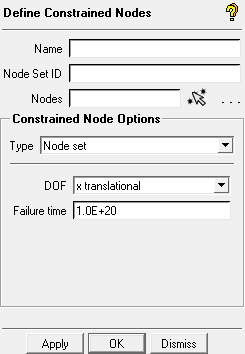

The following parameters are specified:
- Name
Enter the desired name for your set.
- Node Set ID
Enter an identifier for your set.
- Nodes
Click the Select node(s) icon and then choose the nodes to be constrained in the graphics window.
- Type
Choose from Node set or Generalized weld using the drop-down list. The additional options are dependent on your choice.
