9.2.7. Graph #2 Selection

Selects the parameter to be plotted in the lower graph from the following options:

  • Top/Str #2 Tension

  • Top/Str #2 Reaction (FRA)

  • Anchor/Str #1 Reaction (FRA)

  • Anchor/Str #1 Tension

  • Node Tension

  • Node Position

  • Node Velocity

  • Touchdown Point

  • Cable Energy

Quasi-Static Solution - Superimposes the quasi-static solution onto the cable dynamics analysis results.

Auto-SAVE to Selected Graphs - This option allows the lower plot to be viewed in the AGS Graphs window.

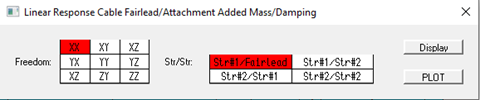

Added Mass/Damping – Plot selection for the linear response of cable fairlead and attachment added mass/damping. Display selection for the low frequency fairlead equivalent added mass/damping and cable fairlead stiffness.
