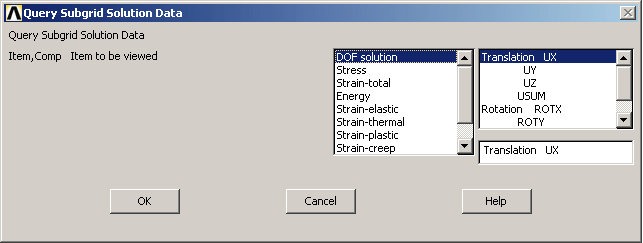

This is a two-column selection list dialog box. First choose a category of the solution data from the left column, and then pick the desired component from the right column.
- Mechanical APDL Function
Identifies the item of the solution data to be queried.
For any picked subgrid point on the model, Mechanical APDL retrieves the data value from the database and displays it. The /EFACET command controls the number and location of subgrid points available for querying and the AVRES command controls the method of averaging results for querying.
- Solution Data Item
Categories of solution data. Use the scroll bar to see all valid items.
- Solution Data Component
Component of the solution data item. The list of valid components varies depending on the chosen category. Use the scroll bar to see all valid components.
- Selection
A visual verification of the chosen item and component of the solution data. (This is not a text entry box.)
