VM204

VM204
Solid Model of an Axial Bearing

Overview

Reference:Any basic geometry text
Analysis Type(s):Solid Modeling Boolean Operations
Element Type(s):None
Input Listing:vm204.dat

Test Case

Find the volume of the axial bearing shown below.

Figure 320: Axial Bearing Problem Sketch

Axial Bearing Problem Sketch

Analysis Assumptions and Modeling Notes

The model is created entirely using only geometric primitives and solid model Boolean operations. A glue operation is used to provide continuity between model entities.

Results Comparison

TargetMechanical APDLRatio
Volume42.99742.9951.000

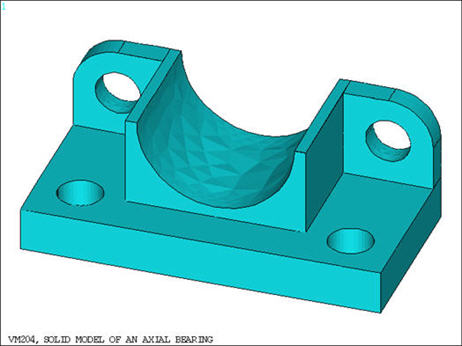

Figure 321: Solid Model of an Axial Bearing

Solid Model of an Axial Bearing
