Mechanical APIs support all available actions for the condensed part worksheet.

Getting the Condensed Part Worksheet Object

To get the condensed part worksheet object, execute these commands:

cp = DataModel.GetObjectsByType(DataModelObjectCategory.CondensedPart)[0]
cpws = cp.Interfaces

Because the index is 0, this sample code gets the first condensed part and stores a variable of the CondensedPartInterfaces object that can be used to modify the data in the worksheet.

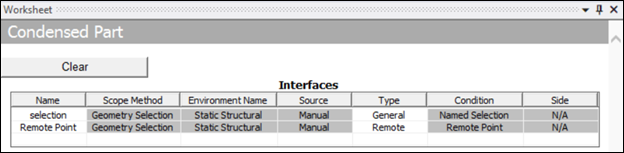

Adding New Interfaces to the Condensed Part Worksheet

The CondensedPartInterfaces object has these methods:

You can use the Add() method to add CondensedPartInterface, which is the object for each element in the list and controls the data of a single row in the worksheet.

For example, to add CondensedPartInterface to the worksheet:

cpws.Add()
cpws[0].Type = CondensedPartInterfaceType.General
ns = DataMode.GetObjectsByType(DataModelObjectCategory.NamedSelection)[0]
cpws[0].NamedSelection = ns
cpws.Add()
cpws[1].Type = CondensedPartInterfaceType.General
rp= DataMode.GetObjectsByType(DataModelObjectCategory.RemotePoint)[0]
cpws[1].NamedSelection = rp
