You start by creating a displacement:
d=Model.Analyses[0].AddDisplacement()

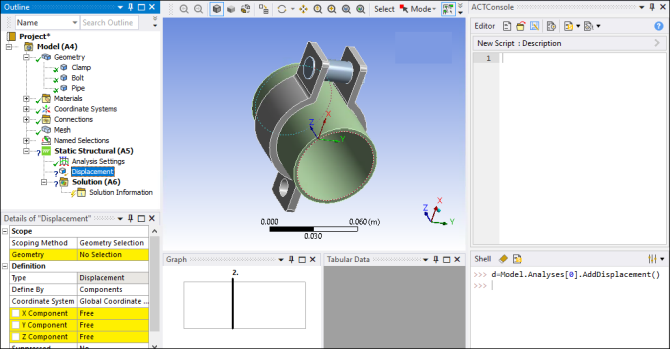

In Mechanical, you can see that by default, the variable definition types for the displacement’s X, Y, and Z components are set to Free.

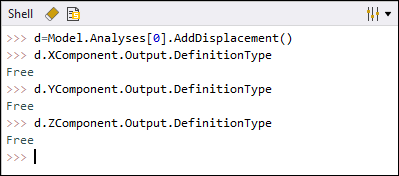

You can verify this by executing the following commands one at a time.
d.XComponent.Output.DefinitionType
d.YComponent.Output.DefinitionType
d.ZComponent.Output.DefinitionType
Note: Even though the expression d.XComponent.Output would
produce the same output in the console when the component is
Free, be aware that output is an instance of the
Variable class. This object is then converted into a
string by the console. Appending .DefinitionType to the
expression yields the actual enum value.
