Set Result Display Options

You use the following command to access Result object display options (Preferences):

Graphics.ViewOptions.ResultPreference

The following properties are available with the ResultPreference object.

Property	Description
`DeformationScaleMultiplier`	Gets or sets the deformation scale multiplier for the result.
`DeformationScaling`	Gets or sets the deformation scale multiplier to either Auto Scale (`DeformationScaling.Auto`) or True Scale (`DeformationScaling.True`).
`ShowMinimum`	Gets or sets whether to display the result minimum value annotation label.
`ShowMaximum`	Gets or sets whether to display the result maximum value annotation label.
`GeometryView`	Gets or sets the result geometry view.
`ContourView`	Gets or sets the result contour view.
`ExtraModelDisplay`	Gets or sets the result edge display option.
`IsoSurfaceValue`	Gets or sets the capping value for Capped ISO surface view.
`CappingType`	Gets or sets the result capping type.
`ScopingDisplay`	Gets or sets the result scoping display.

Examples

Example 1

The following code sets the DeformationScaleMultiplier to 10 and the DeformationScaling to True.

Graphics.ViewOptions.ResultPreference.DeformationScaleMultiplier = 10
Graphics.ViewOptions.ResultPreference.DeformationScaling = MechanicalEnums.Graphics.DeformationScaling.True

Or...

Graphics.ViewOptions.ResultPreference.DeformationScaleMultiplier = 10
Graphics.ViewOptions.ResultPreference.DeformationScaling = MechanicalEnums.Graphics.DeformationScaling.Auto

Note that the deformation Scale Factor has two options:

True (True Scale): A multiplier for the actual deformation of the model.
Auto (Auto Scale): A multiplier for an application controlled computation for an Auto Scale of the model.

The example deformations illustrated below demonstrate how an undeformed model is deformed with the True Scale and an Auto Scale factors.

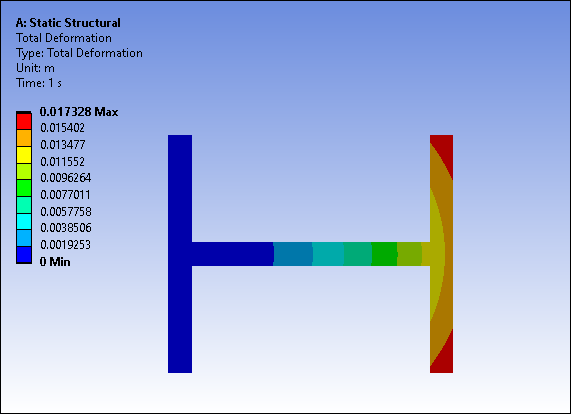

Undeformed

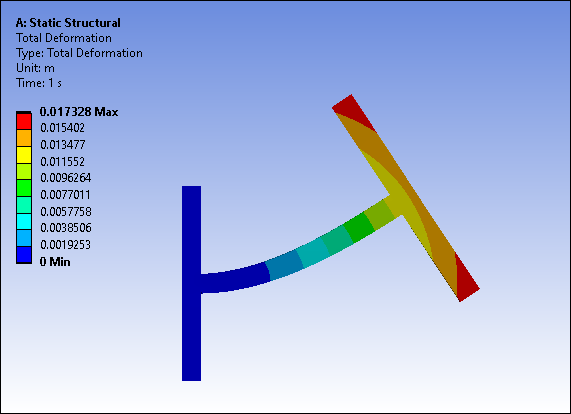

True Scale

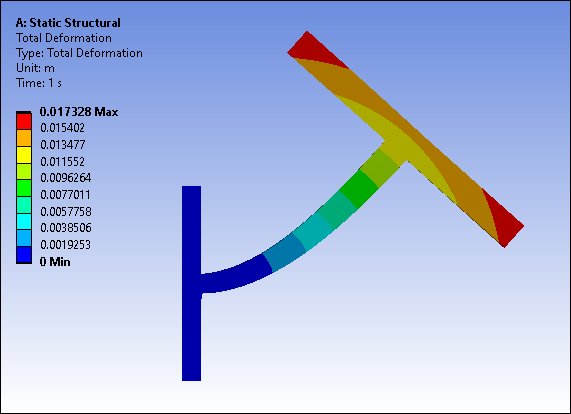

Auto Scale

Example 2

The following code sets the:

GeometryView property to CappedIsoSurface
IsoSurfaceValue property to 0.013477
CappingType property to Top.

Graphics.ViewOptions.ResultPreference.GeometryView = MechanicalEnums.Graphics.GeometryView.CappedIsosurface
Graphics.ViewOptions.ResultPreference.IsoSurfaceValue = Quantity('0.013477')
Graphics.ViewOptions.ResultPreference.CappingType = MechanicalEnums.Graphics.CappingType.Top

Example 3

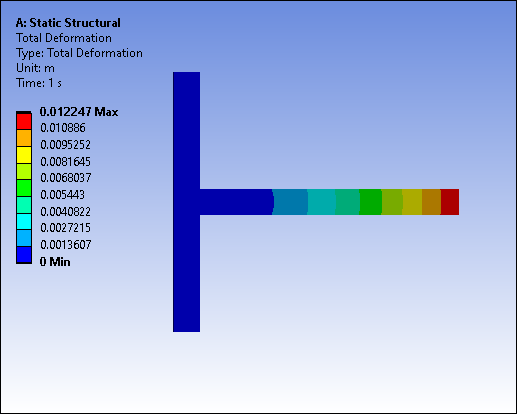

When you scope the result to the bodies shown below, the following code sets the:

ContourView property to SmoothContours
ExtraModelDisplay property to NoWireframe
ScopingDisplay proerpty to ResultOnly

Graphics.ViewOptions.ResultPreference.ContourView = MechanicalEnums.Graphics.ContourView.SmoothContours
Graphics.ViewOptions.ResultPreference.ExtraModelDisplay = MechanicalEnums.Graphics.ExtraModelDisplay.NoWireframe
Graphics.ViewOptions.ResultPreference.ScopingDisplay = MechanicalEnums.Graphics.ScopingDisplay.ResultOnly
