Result-Specific Legend Settings

Some legend settings are specific to the result object. To access result-specific legend settings, you first navigate to the result with the legend that you want to manipulate and then use the command CurrentLegendSettings:

Ansys.Mechanical.Graphics.Tools.CurrentLegendSettings()

Note: You can only manipulate the legend of the result that is currently active.

These properties are available for the object for result-specific legend settings:

Property	Description
`NumberOfBands`	Gets or sets the number of bands on the legend.
`AllScientificNotation`	Gets or sets whether result values are to display in scientific notation.
`Digits`	Gets or sets the number of significant digits.
`ColorScheme`	Gets or sets the color scheme for the legend.
`SemiTransparency`	Gets or sets whether the legend is semi-transparent.
`LogarithmiScale`	Gets or sets whether the result values are distributed in a logarithmic scale.
`HighFidelity`	Gets or sets whether the high fidelity mode is on.
`GetLowerBound`	Gets the lower bound value of the specified band.
`SetLowerBound`	Sets the lower bound value of the specified band.
`GetUpperBound`	Gets the upper bound value of the specified band.
`SetUpperBound`	Sets the upper bound value of the specified band.
`GetBandColor`	Gets the color of the specified band.
`SetBandColor`	Sets the color of the specified band.
`GetBandColorAuto`	Gets whether the color of the specified band is set to `Automatic`.
`SetBandColorAuto`	Sets the color of the specified band to `Automatic`.
`ResetColors`	Resets all colors to default values.
`ExportLegend`	Exports the legend settings to an XML file.
`Reset`	Resets all legend customizations to default values.

This code modifies many result-specific legend settings for the current result object, including whether result values are to display in scientific notation, number of bands, color scheme, and semi-transparency, and it then exports these settings to an XML file:

legendSettings = Ansys.Mechanical.Graphics.Tools.CurrentLegendSettings()
legendSettings.AllScientificNotation = False
legendSettings.Digits = 4
legendSettings.NumberOfBands = 7
legendSettings.ColorScheme = LegendColorSchemeType.ReverseGrayScale
legendSettings.SemiTransparency = True
legendSettings.SetLowerBound(0, Quantity(2.38e-8,'m'))
legendSettings.SetUpperBound(0, Quantity(3.38e-8,'m'))
legendSettings.SetUpperBound(1, Quantity(4.38e-8,'m'))
legendSettings.SetUpperBound(2, Quantity(5.38e-8,'m'))
legendSettings.SetBandColor(0, Ansys.Mechanical.DataModel.Constants.Colors.Gray)
legendSettings.SetBandColor(1, Ansys.Mechanical.DataModel.Constants.Colors.Blue)
legendSettings.SetBandColor(2, Ansys.Mechanical.DataModel.Constants.Colors.Cyan)
legendSettings.SetBandColor(3, Ansys.Mechanical.DataModel.Constants.Colors.Green)
legendSettings.SetBandColor(4, Ansys.Mechanical.DataModel.Constants.Colors.Yellow)
legendSettings.SetBandColor(5, Ansys.Mechanical.DataModel.Constants.Colors.Red)
legendSettings.SetBandColor(6, Ansys.Mechanical.DataModel.Constants.Colors.White)
legendSettings.ExportLegend("E://file.xml")

Note: Color can be set in RGB using Ansys.Mechanical.DataModel.Utilities.Colors.RGB:

legendSettings.SetBandColor(0,Ansys.Mechanical.DataModel.Utilities.Colors.RGB(255,0,0))

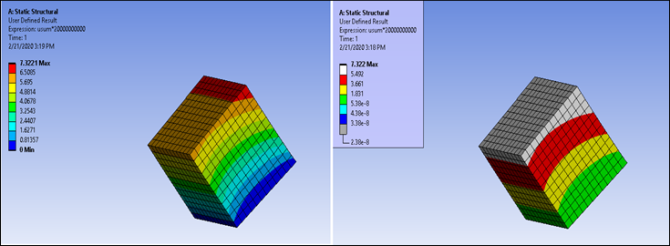

The following figure shows the legend using the original settings versus the modified settings.
