Accessing Contour Results for Surfaces

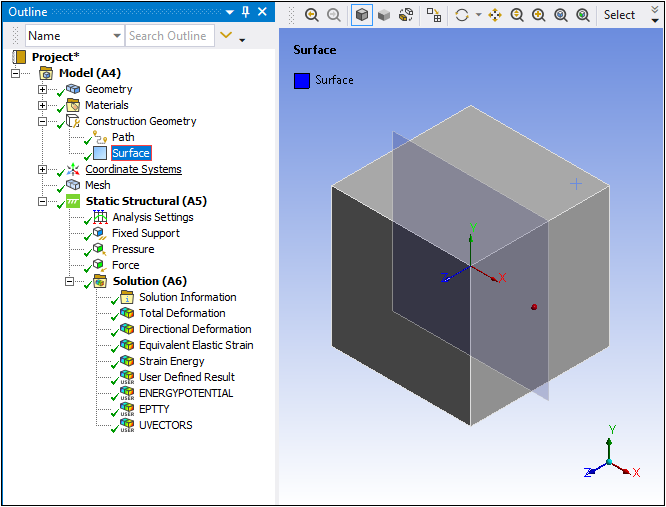

You can create and evaluate on Construction Geometry Surfaces.

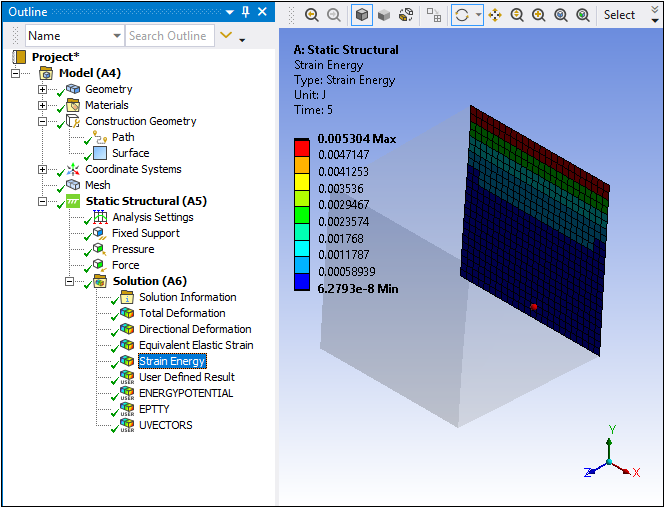

For the Surface scoping, the following code displays the result in tabular format.




Note:  PlotData displays result values along the X, Y and Z coordinates of the points on the surface. Exporting surface results displays the result values per facet that creates the surface and might have duplicate entries as facets share points. Hence the output of PlotData might miss the point or element pairs present when exporting the surface result.
