1.3.4.8. Configure Plots

Configure the objects displayed in the Scene.

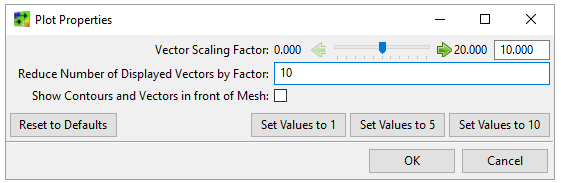

  •   Plot Properties: Configure vector density and length for the direction plots. In addition, you can specify whether vectors and contour plots are always shown in front of the mesh.

  •   Show Legend: Show / hide the plot legend.

  •   Toggle Text Plot: Show / hide text labels in plots, such as Failure Mode or User-Defined Text.

  •   Show Min/Max Labels: Show / hide labels highlighting the minimum and maximum value of a plot. Note that the labels are not shown when Ply Offsets are active.

  •   Show Description: Show / hide the plot description in the top left corner of the scene.

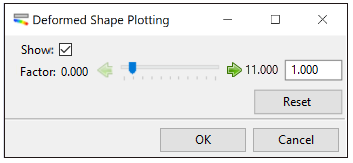

  •   Show Deformed Shape: Select whether the plot is shown on the original or deformed mesh.
