The ply angles can be visualized with the fiber direction buttons on the toolbar.

Figure 1.25: Fiber Directions in the Toolbar

 : Display the fiber direction of the selected ply.

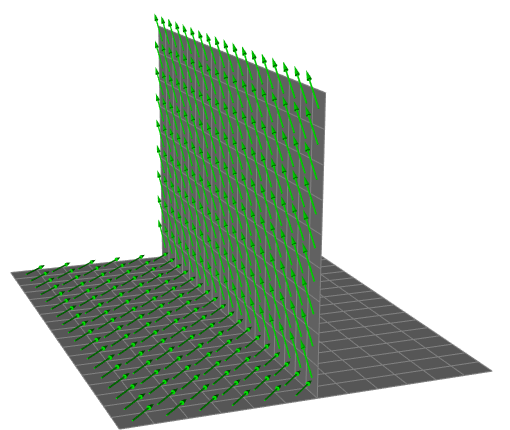

Figure 1.26: Visualization of the Fiber Direction

 : Display the transverse ply direction.

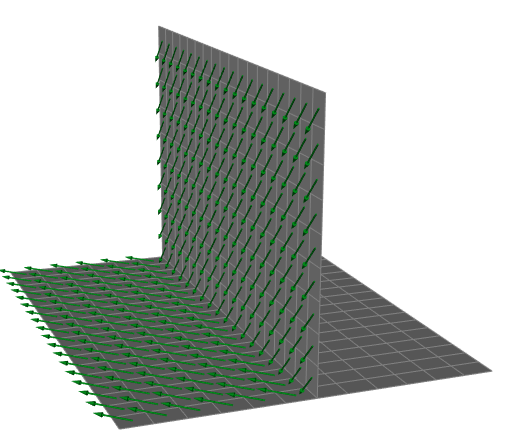

Figure 1.27: Visualization of the Transverse Ply Direction
