3.1. Project Description

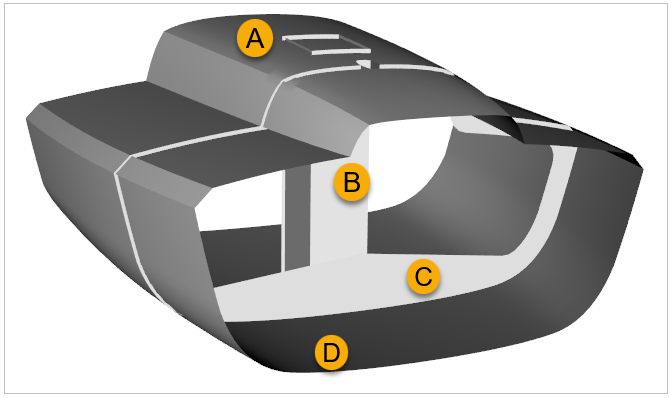

The sailboat components are shown below: deck (A), keel tower (B), bulkhead (C), and hull (D).

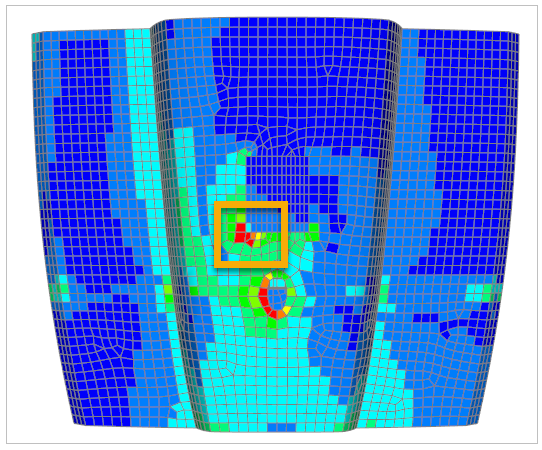

You will go through swift iterations of analyzing the failure area of the deck as shown in the following image, modifying the lay-up, and defining a patch to reinforce the structure locally.


Note:  Results shown in this tutorial may differ slightly from the results displayed in your model.
