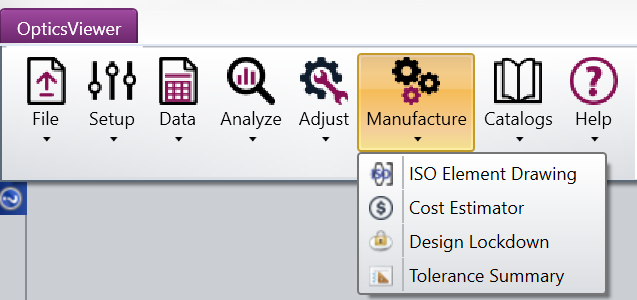

Manufacture drop-down

This tab contains tools which can help prepare a system for manufacturing.

ISO Element Drawing: Creates an ISO 10110 type drawing of surface, singlet, or doublet elements suitable for use in optical shop fabrication. See also ISO Element Drawings.

Cost Estimator: Is used to obtain price estimates of singlet lenses from the selected Provider. See also Cost Estimator.

Design Lockdown: Converts all idealized inputs of a system into Real Manufacturing Inputs of a production system. See also Design Lockdown.

Tolerance Summary: Generates a text listing of the tolerances which can be saved or printed. See also Tolerance Summary.
