Ellipse

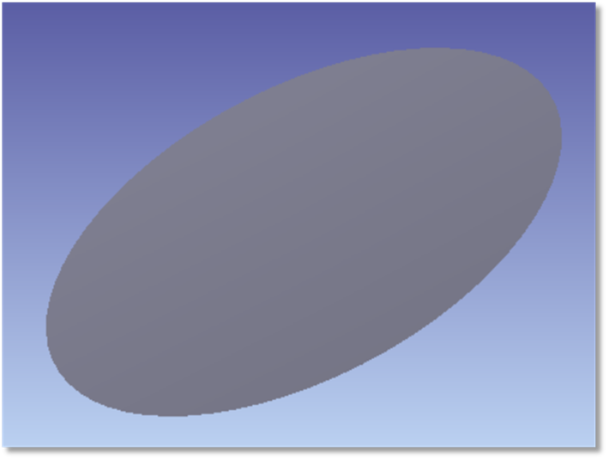

The ellipse is a plane elliptical surface shape defined by 2 parameters:

Parameter #	Description	Face Name	Face #
1	The X Maximum Half Width.	All Faces	0
2	The Y Maximum Half Width.	All Faces	0

The ellipse resides entirely within the local XY plane. This object is a special case of the more general annulus. The reference coordinate is the center of the ellipse.

Face Numbers: All faces Face 0.
