Cylinder 2 Volume

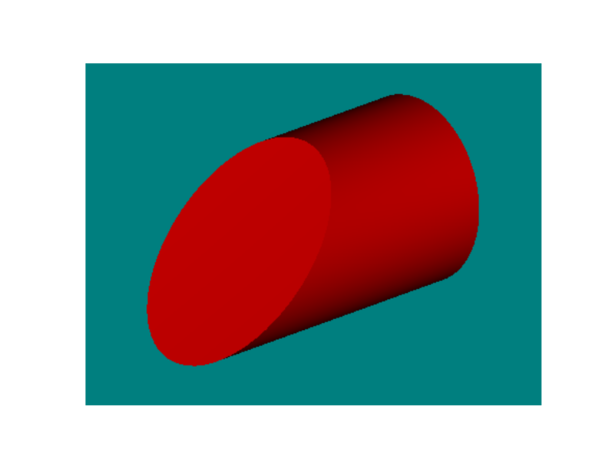

A cylinder volume is a rotationally symmetric volume defined b the following parameters:
| Parameter # | Description | Face Name | Face # |
| 1 | The radius of the cylinder. | NA | NA |
| 2 | The length along the local Z axis of the cylinder. | Side | 0 |
| 3 | The tilt of the front face along the y direction in degrees. | Front | 1 |
| 4 | The tilt of the rear face along the y direction in degrees. | Back | 2 |
| 5 | The tilt of the front face along the x direction in degrees. | Front | 1 |
| 6 | The tilt of the rear face along the x direction in degrees. | Back | 2 |
This object is very similar to the cylinder 2 pipe, except the front and rear faces are included to make the shape a closed volume. Because the object is a closed volume, it may be reflective, refractive, or absorbing. The reference coordinate is the center of the front aperture. Face Numbers: Front face Face 1, back face Face 2, all other faces Face 0.
