Cylinder 2 Pipe

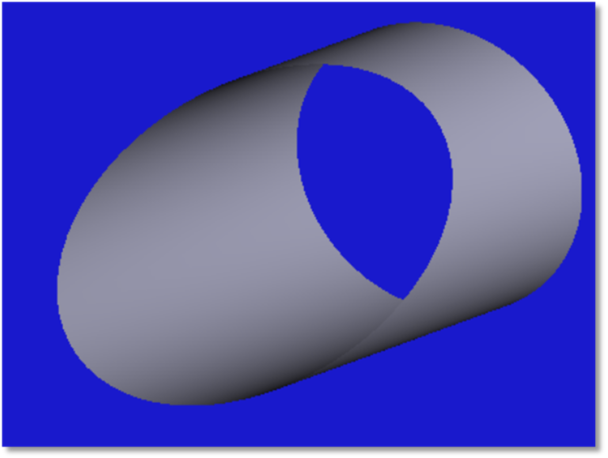

A cylinder 2 pipe is a rotationally symmetric surface defined by 4 parameters:

Parameter #	Description	Face Name	Face #
1	The radius of the cylinder.	All Faces	0
2	The length along the local Z axis of the cylinder.	All Faces	0
3	The tilt of the front face along the y direction in degrees.	All Faces	0
4	The tilt of the rear face along the y direction in degrees.	All Faces	0
5	The tilt of the front face along the x direction in degrees.	All Faces	0
6	The tilt of the rear face along the x direction in degrees.	All Faces	0

The reference coordinate is the center of the front face. Face Numbers: All faces Face 0.
