Transmission Fan

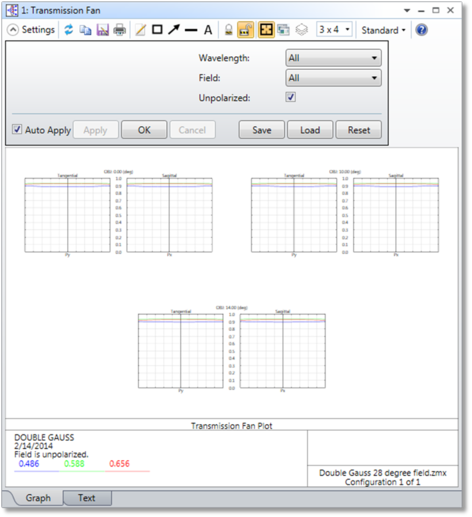

Generates a graph of the transmitted intensity for each field and wavelength as a function of either tangential or sagittal pupil fans.

Jx, Jy Jones electric field. See "Defining the Initial Polarization".

X, Y Phase Phase of the X, Y component of the Jones electric field in degrees.

Wavelength The wavelength number of the rays to trace.

Field The field position number of the rays to trace.

Unpolarized If checked, the electric field definition is ignored and the unpolarized computation is performed.

Discussion The polarization transmission fan is useful for determining the transmission variation over the pupil as a function of field and wavelength. See "Polarization Analysis".
