System Check

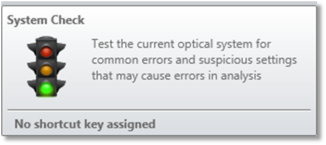

The System Check tool is available in the Diagnostics section of the Setup tab. This tool generates a data about the lens system in a separate window.

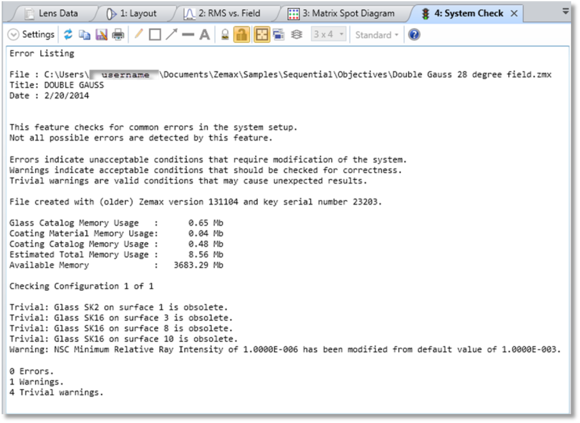

The following system check was generated with the OpticStudio sequential objectives sample file "Double Gauss 28 degree field.ZMX":

This report tests the current optical system for common errors and suspicious settings that may cause errors in analysis. The feature does not check for every possible error. Each detected potential problem is reported as either an error or a warning. Errors should be considered serious flaws in the system setup that should be corrected. Warnings are less severe, and indicate conditions that should be reviewed and the relevant settings verified for correctness.
