Rectangular Roof

There are 3 parameters used to define a rectangular roof:

Parameter #	Description	Face Name	Face #
1	The X half width.	All Faces	0
2	The Y half width.	All Faces	0
3	The angle between the two rectangles.	All Faces	0

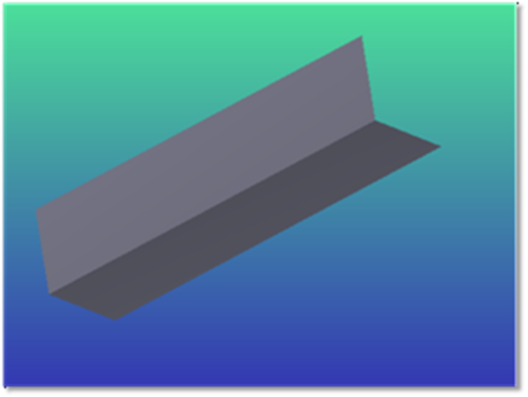

A rectangular roof is composed of two rectangles which meet at an angle.

The reference point is the midpoint of the line joining the two rectangles. Face Numbers: All faces Face 0.
