Grin Profile

Grin Profile (Sequential UI Mode)

Plots the index of refraction along any axis for gradient index surfaces.

Surface The surface number of the gradient index surface.

Wavelength The wavelength number to use.

Show Index vs. Choose X, Y, or Z as the independent variable.

Min X, Y, or Z Defines the left X- axis of the plot, the minimum value of the independent variable.

Max X, Y, or Z Defines the right X- axis of the plot, the maximum value of the independent variable.

X, Y, or Z Value The value of the two fixed coordinates.

Minimum Index Defines the bottom Y- axis of the plot. Use zero for the default value.

Maximum Index Defines the top Y- axis of the plot. Enter zero for the default value.

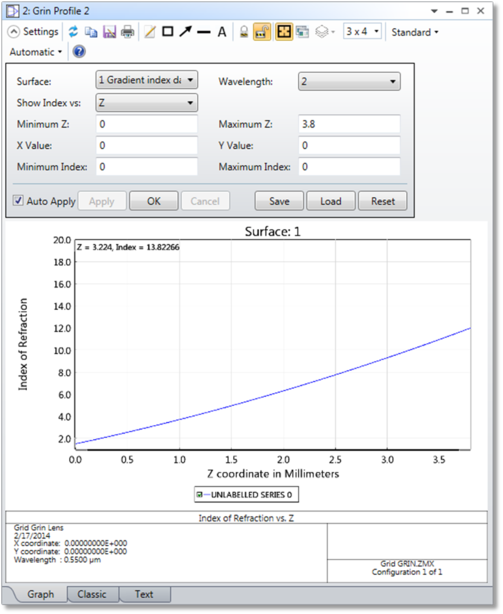

Discussion This plot shows index of refraction along either the X, Y, or Z axis for gradient index surfaces.
