Faceted Surface

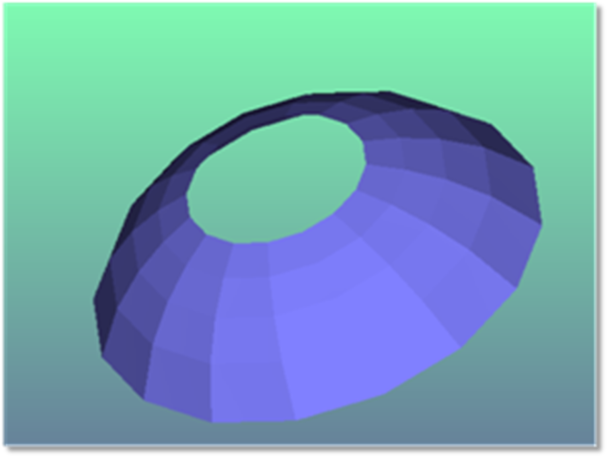

A Faceted Surface is a standard surface shape faceted into flat polygons. The following additional parameters are used:

Parameter #	Description	Face Name	Face #
1	The radius of curvature.	All Faces	0
2	The conic constant.	All Faces	0
3	The shape; use 0 for annular, 1 for elliptical, 2 for rectangular, and 3 for toroidal.	All Faces	0
4-5	For shape 0, these are the minimum and maximum radial apertures; otherwise these are the X/Y half widths.	All Faces	0
6-7	The number of facets to use in making the surface into polygons.	All Faces	0

The number of facets to use in making the surface into polygons.

The reference coordinate is the origin of the front face. All faces Face 0.
