How to Install the Behavior Execution Engine Plug-In

Note: Behavior Execution Engine must be installed in order to use the BEE Plug-in in ModelCenter.
  1. Install ModelCenter Remote Execution and ModelCenter.
  2. Install MagicDraw/Cameo 2019 or later.
  3. Download the Behavior Execution Engine .zip file from the AGI website.
  4. Extract the file.
  5. Run the setup.exe file.
  6. Click through the installation wizard and select options as needed.
  7. Install the BEE Plug-In.

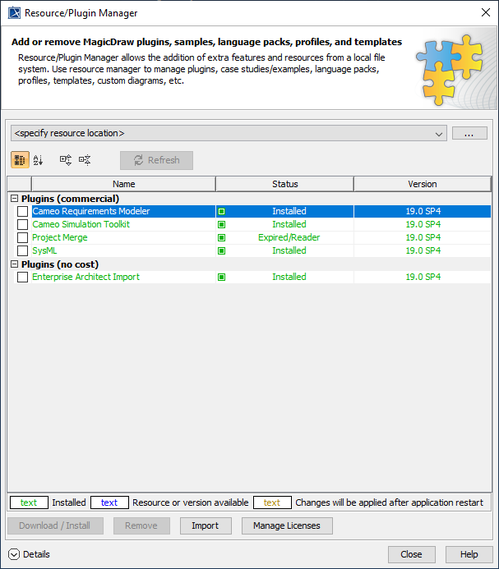

  8. In MagicDraw/Cameo, select the Help > Resource/Plugin Manager option. The Resource/Plugin Manager dialog opens.
  9. Click the Import button.

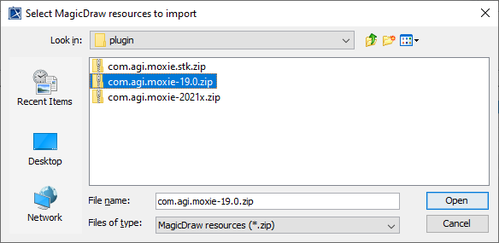

  10. A file select dialog will open. Select the file in the <BEEInstallDir>/plugin folder that matches your MagicDraw/Cameo version.
    If the com.agi.moxie.stk.zip folder is available, select that as well.
  11. Click the Open button.

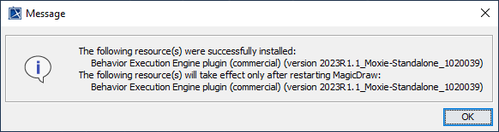

    The plugin will be installed.

  12. Restart MagicDraw/Cameo.
  13. Open the Behavior Execution Engine Client Licensing Settings application from the Start menu. Set up the license server information for BEE.
