Editing Float Functional data

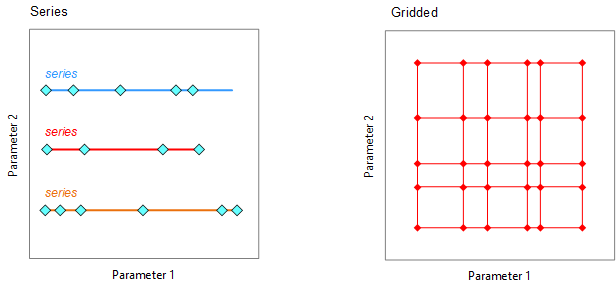

The data points for Float Functional Attributes may be specified in series or gridded format. Values are stored to a maximum of 15 significant figures.

Series functional data

Data points are specified in one or more series, where only the parameter changes.

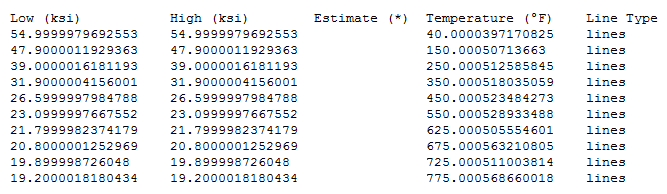

Example:Attribute Tensile Strength with Temperature:

Grid functional data

Data points are specified as a grid. All parameter values are specified for each data point. This format is suitable for data that is regular, complete, highly curated, or where users need to be able to change the x-axis, or do multi-dimensional interpolation in Granta MI.

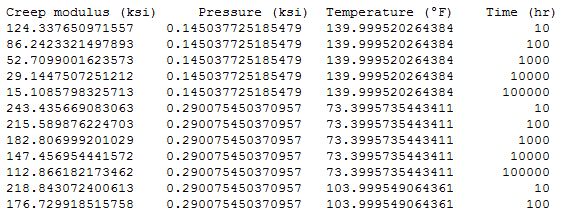

Example:Creep modulus-time:
