Specifying selection criteria for a limit stage: Numeric attributes

You can cut, copy, and paste values here.

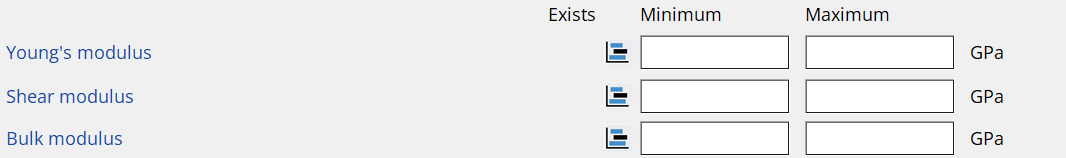

For the numerical attributes Range, Point, Functional Range, and Functional Point, data values can be entered as:

• an integer e.g. 456
• a decimal e.g. 123.456, -0.000123456
• formatted with an exponent e.g. 456e10 or 123.456e9

with a maximum of 6 significant figures.

For Integer attributes, data values can be entered as an integer e.g. 456, with a maximum of 6 significant figures.

Click the Limit Guidance button for help on the maximum and minimum value in the database for a material class. Limit guidance charts are only available for some attributes.

For many attributes, you can click the attribute name to view additional notes about it.

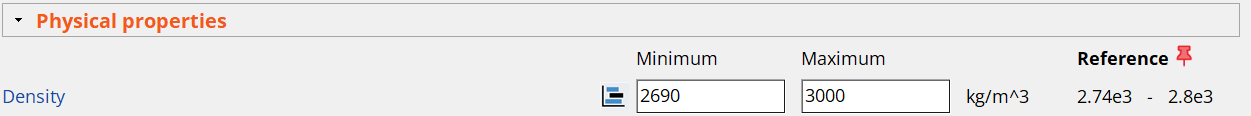

If a reference record is set, its values for each property are shown alongside the selection criteria in the Limit Stage window, for example:

Set the selection criteria and then click Apply. This performs the selection and updates the Selection Results window.
