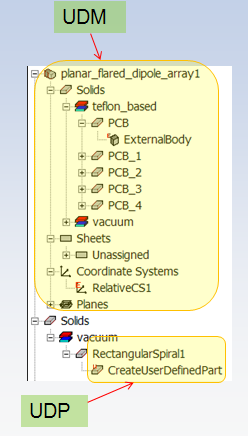

UDM Compared to User-Defined Primitives
User-Defined Models (UDM) resemble User-Defined Primitives (UDP):
- Ansys EM products can be extended by users through new UDMs.
- UDM plugins are discovered by searching standard directory paths.
- Plugins for s static UDM can build a model using 'callback interfaces' (like create-box, create-cylinder, subtract etc) similar to UDP.
- UDMs run inside Ansys EM applications.
- UDMs provide geometry, topology, persistence and parameters
In contrast to a UDP:
- A UDM provides multiple Parts/CS/etc.
- A UDM provides part attributes and material assignment.
- A UDP does not define part attributes or material.
A UDP provides primitive operation only for a single Part.
The UDM Properties window have four tabs - Definitions, Parameters, Options and Info.
- Definition tab has:
- UDM name
- Coordinate system used to position UDM
- May have external reference to file
- Info tab has UDM dll or .py name, dll or .py location, version etc
- Option tab may have options if any
